A RELIABLE SOLUTION FOR HORIZONTAL ACCESS
Like the vertical solutions, this EN 795-Type D (2012) compliant anchorage system provides a safe working environment for people working at height. Extremely flexible with a various configurations, this system can be used as fall arrest or fall restraint and can be fixed on the ground, walls or even overhead (fixing span of 1m).
Söll GuideLoc has been tested for a maximum of three users connected simultaneously. Available in aluminium, galvanised steel or marine grade stainless steel materials. Sectional lengths (up to 4m each) are supplied to make up the required overall system length. To complete the installation we supply the required bracket type and quantities along with all accessories needed to ensure compliance to both the EN795 Standard and the Manufacturers requirements.
HOW IT WORKS
The worker wears a full body harness and uses a lanyard (or inertia) to connect to the eye of the trolley, which travels along the GuideLoc GuideRail.

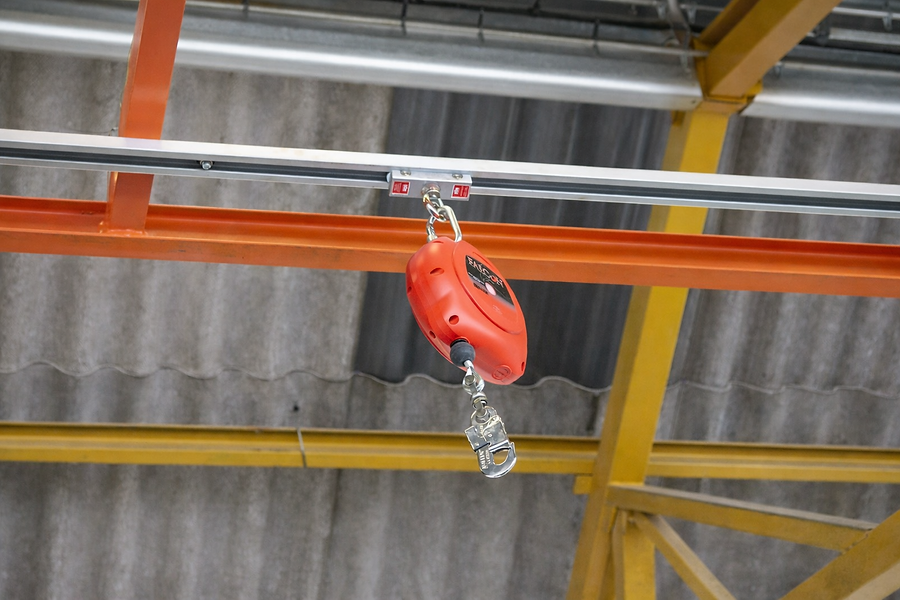

For overhead applications, a retractable fall arrester can be used to provide the most effective means of protection.
KEY BENEFITS OF SÖLL GUIDELOC HORIZONTAL GUIDERAIL
-
Enables uninterrupted access along elevated paths
-
Designed to endure challenging environments
-
Tailored to fit new or existing structures
-
Compliant with international safety standards
-
Installation and maintenance across the UK
-
Reduces fall risks for those working at height
TRANSFER FROM RAIL TO RAIL
In combination with a Söll ascent route, the GlideLoc fall arrester can also be used on the rail. This allows continuous transfer from a ladder or vertical rail to a horizontal guide rail, e.g. while accessing a platform. It is not necessary to disconnect and re-insert the fall arrester.
PRODUCT DOWNLOADS
GuideLoc Horizontal GuideRail Product Catalogue - For details of GuideLoc GuideRail products
including dimensions, material and features.
